IPTV SET-TOP BOX MAG256/MAG257

MAG256/257 is a high-performance Set-Top Box solution with new STiH301 chipset. The STB uses HEVC technology for provision of high-quality video with more velocity. Owing to the enhanced capabilities of the MAG256/257 Set-Top Box, it is possible to play back the video with quality up to Full HD and to use resource-intensive applications.

Faster and more powerful media processor ARM Cortex A9 1.5 GHz
HEVC support
USB 2.0 and USB 3.0 ports to connect external carriers and Wi-Fi adapters

New model MAG

Specifications

MAG256
MAG256 w2
MAG257

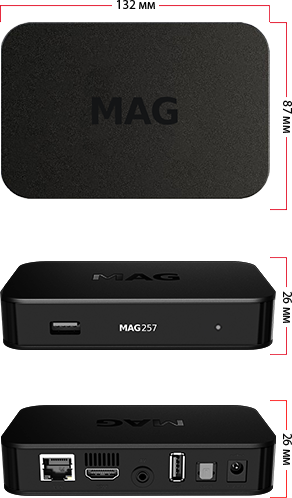

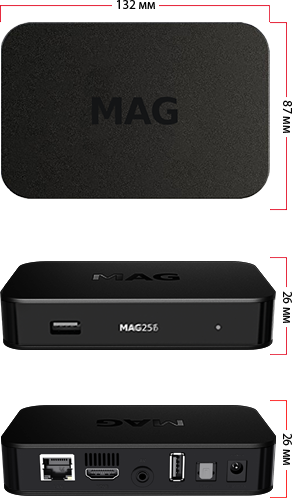

Dimensions

Width/depth/height, mm	132x87x26
Weight, g	190

Hardware

Chipset	STiH301
Processor	ARM Cortex A9 1.5 GHz
Performance	3500 DMIPS
RAM	1 GB
Flash memory	512 MB

Software

Operating system	Linux 3.3
	Built-in Media Portal with WebKit-based IPTV-functionality, HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
DRM option	Secure Media
Middleware supported	Ministra TV-platform

Interfaces

	HDMI 1.4a-output, Composite + stereo A/V output, Audio output S/PDIF, Ethernet 100 Mb/s, USB 2.0 and USB 3.0 (WiFi-adapter can be connected), Built-in WiFi 2.4 GHz/5 GHz ac (optional)

Sources of media content

	PC and NAS in local networ, Stream media protocols (RTSP, RTP, UDP, HTTP), USB-devices

Audio & video

Audio сodecs	MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), Dolby Digital, AAC-LC, HE-AAC v1, HE-AAC v2
Audio formats	MP3, MPA, M4A, OGG, WAV, AAC
Video modes	1080i, 1080p, 720p, 576p, 480р, PAL, NTSC
Video сodecs	MPEG1/2 MP@HL, H.264 HP@level 4.1, H.265 (HEVC), MPEG4 part 2 (ASP), XviD; 3D and HD video supporting (up to 40 Mbit/s and above)
Video containers	MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT
Image formats	JPEG, PNG, BMP, GIF, RAW
Subtitles	ttxt sub, DVB, WebVtt, PGS, Ass/Ssa, Srt, Sub, Closed captions
Playlist formats	M3U
