MAG420

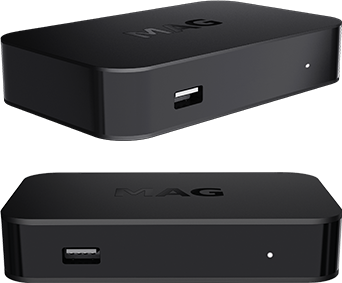

Decodificador básico IPTV/OTT con soporte para 4K MAG420/420w1

MAG420 es una solución potente y económica para lanzar proyectos IPTV/OTT. Gracias al procesador ARM Cortex-A53 sobre el chipset Hi3798MV200 y el codec integrado HEVC, este decodificador reproduce de manera sencilla contenido 4K a 60 fps y no crea cargas excesivas en la red.

MAG420 ofrece puro sonido envolvente con la ayuda del soporte de audio integrado de seis canales Dolby Digital.

Soporte 4K y HEVC, 512 MB RAM, 512 MB NAND, USB x 2 pzs. (3.0, 2.0), Wi-Fi integrada (solo para MAG420w1), SO Linux, salidas HDMI y RCA


¿Cuál es la diferencia?

MAG420

MAG420 es un modelo básico de decodificador. Este dispositivo puede ser conectado a internet a través de la interfaz Ethernet.

MAG420w1

El MAG420w1 tiene integrado un módulo Wi-Fi estándar 802.11 b/g/n. Este decodificador puede ser conectado a Internet vía inalámbrica; sin cables o necesidad de accesorios adicionales.

FUNCIONES ÚTILES
Soporte 4K y HEVC

El MAG420 gestiona fácilmente video 4K. Gracias al códec incorporado EVC (h.265), los usuarios pueden acceder a contenido UHD, incluso cuando se tiene baja velocidad en Internet.

Fiabilidad y rendimiento

El chipset HiSilicon3798MV200, un procesador ARM Cortex-A53 y 512 MB RAM hacen de este dispositivo la mejor opción para ejecutar proyectos modernos IPTV/OTT.

Conexión Wi-Fi fácil

Gracias al módulo Wi-Fi estándar integrado 802.11 b/g/n, podrá situar el decodificador en cualquier lugar de la casa, sin preocuparse de cables.*

*Solo para MAG420w1

Soporte Dolby Digital

La tecnología integrada Dolby Digital respalda un sonido envolvente en seis canales y provee sonido de alta fidelidad, incluso al reproducir audio comprimido.

Salida HDMI y RCA

Puede conectar TVs de diferentes generaciones a MAG420: ambas pantallas con entrada HDMI y dispositivos con entrada RCA son compatibles con este dispositivo.

Especificaciones técnicas

  • MAG420
  • MAG420w1

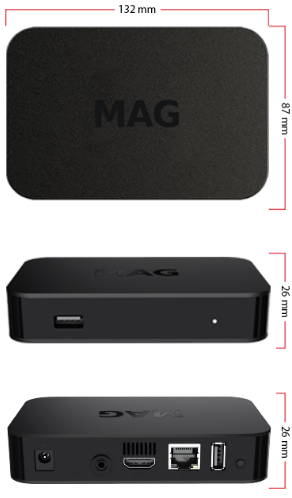

Dimensiones
Parámetros físicos 132х87х26
Peso, gramos 128
Hardware
Chipset Hi3798MV200
Procesador ARM Cortex-A53 Quad Core CPU 1200 MHz
Rendimiento 15 000 DMIPS
Memoria 512 MB
Memoria flesh 512 MB NAND
Software
Sistema operativo Linux 4.4.35
Middleware apoyado Plataforma de TV Ministra versión 5.4.1 o superior
Interfaces externas
RCA 3,5 mm, HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1
Fuentes de media contenido
PC y NAS en una red local, Protocolos media de Stream (RTSP, RTP, UDP, HTTP), Zixi protocol (opcional), dispositivos USB
Audio y Vídeo
Códecs de audio MPEG L1/L2/L3, Dolby Digital, AAC-LC, HE AAC V1/V2, APE, FLAC
Formatos de audio AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV
Modos de vídeo PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Códecs de vídeo MPEG1/2 MP@HL, MPEG4 part 2 (ASP),H.265 Main/Main 10@L5.1 High 2160p@60 fps (opcional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Vídeo Contenedores TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Formatos de imagen JPEG, PNG, BMP, RAW
Subtítulos DVB, PGS, SRT, SSA/ASS, SUB, subs Teletexto, WebVtt, subtitulos incrustados
Formatos de imagen M3U, M3U8, PLS, CUE
Lista de equipo
Decodificador MAG420, Manual de Usuario, cable HDMI, Adaptador de potencia 12V 1A, Mando a distancia, 2 pilas AAA, Caja

* Cubierto por uno o más reclamos de las patentes enumeradas en patentlist.hevcadvance.com
** Los términos HDMI y HDMI High-Definition Multimedia Interface, y el Logotipo HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc. en los Estados Unidos y en otros países.
