4.7 13
MAG250

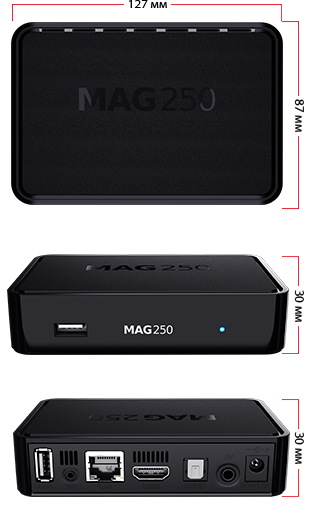

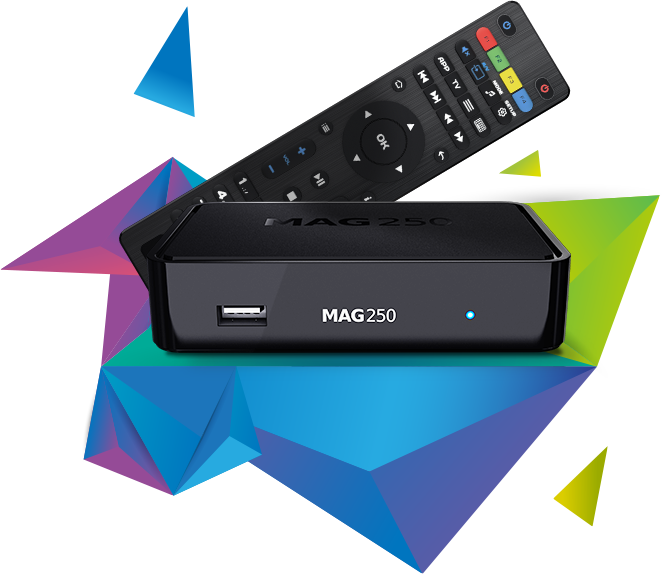

IPTV SET-TOP BOX MAG250

MAG 250 ist ein Basismodell der Serie MAG und wurde für den leichten Start des Projektes in IP-Netz entwickelt. Die Set-Top-Box ist für die Internetprovider, OTT-Betreiber und Content-Aggregatoren gedacht, die ihre Dienste auf der IPTV, OTT und VoD-Basis anbieten. MAG250 enthält die von Betreiber verlangten Funktionen, wie die Wiedergabe von digitalen TV-Sendern in hoher Qualität, Unterstützung von Video-Streaming und Video-on-Demand.

STi7105 450Mhz, Linux 2.6.23, Composite AV, HDMI 1.3, USB x 2, S/PDIF, LAN, WiFi Ready

Technische Daten

Physikalische Merkmale
Maße (B/D/H); mm 127/87/30
Gewicht, g 190
Hardware
Prozessor STi7105
RAM-Speicher 256 Мб
Flash-Speicher 256 MB
Software
Betriebssystem Linux 2.6.23
Integriertes Mediaportal mit IPTV-Funktion auf WebKit-Basis HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
DRM option Verimatrix(optional), Securemedia
Unterstützte Middleware Ministra TV-platform, OFT-Media, Netup, SmartLabs, Netris, Beenius
Externe Schnittstellen
Visueller Audio-Ausgang S/PDIF, HDMI 1.3-Ausgang, Composite+Stereo A/V Ausgang, Ethernet 100 Mbit/s, USB 2.0 (Unterstützung von externen WLAN-Adapter)
Mediaquellen
PC und NAS im Lokalnetz Stream Media
Protokolle (RTSP, RTP, UDP, IGMP, http), USB-Geräte.
Audio und Video
Audiocodierung MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3)
Audio-Format MP3, MPA, M4A, WMA (optional), Ogg, WAV
Video-Modus 1080i, 1080p, 720p, 576p, 480р, PAL, NTSC
Videocodierung MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), XviD; HD video supporting (up to 40 Mbit/s and above)
Video-Container MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT
Bildformat JPEG, PNG, BMP, GIF, RAW
Untertitel ttxt sub*, DVB, PGS, Srt*, Sub*, Closed captions
Playlist-Format M3U
Das Gesamtpaket
Die Set-Top-Box MAG250, das Datenblatt und Anleitung zur Installation, ein RCA-Kabel mini jack (A/V), ein Netzteil (Stromversorgung) 5B 2A, eine Fernbedienung, die zwei Batterien (AAA-Zelle), die Verpackung.

Neue Generation der Set-Top-Boxen MAG

MAG500AMAG520
