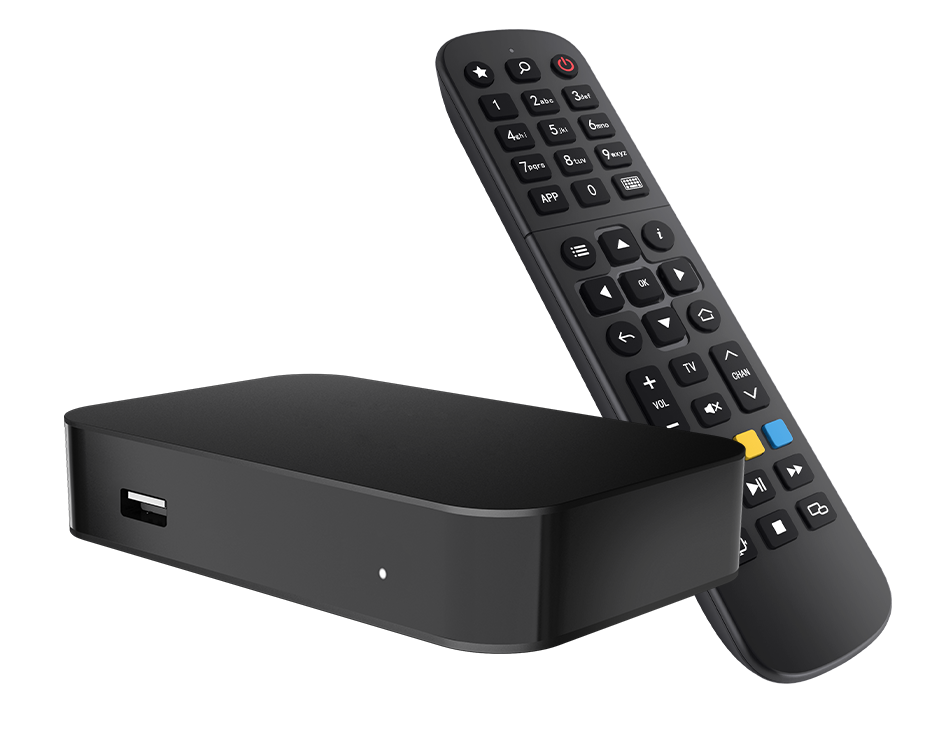

MAG522 –
4K HEVC-enabled
set-top boxes

MAG522 and MAG522w3 Linux set-top boxes, powered by an Amlogic S905X2 chipset, are equipped with a powerful ARM Cortex-A53 CPU with the best GPU. The CPU is 25% faster than the previous generation. The devices play back content in 4K at 60 fps.

Media players help operators maintain a reliable service, while the UI continuity makes it easy to integrate the set-top box into a system that uses legacy MAG devices. On request, MAG522 and MAG522w3 can be configured to work with different middlewares or DRM/CAS.

MAG522 and MAG522w3 Linux set-top boxes, powered by an Amlogic S905X2 chipset, are equipped with a powerful ARM Cortex-A53 CPU with the best GPU. The CPU is 25% faster than the previous generation. The devices play back content in 4K at 60 fps.

Media players help operators maintain a reliable service, while the UI continuity makes it easy to integrate the set-top box into a system that uses legacy MAG devices. On request, MAG522 and MAG522w3 can be configured to work with different middlewares or DRM/CAS.

Solution for operators
and users

MAG522 allows watching TV programs, other videos on demand, content from IPTV/OTT providers, and playing files from external media or over a local network.1 With MAG522, operators provide a unique UI/UX on their services, offer high-quality content, and support customers.

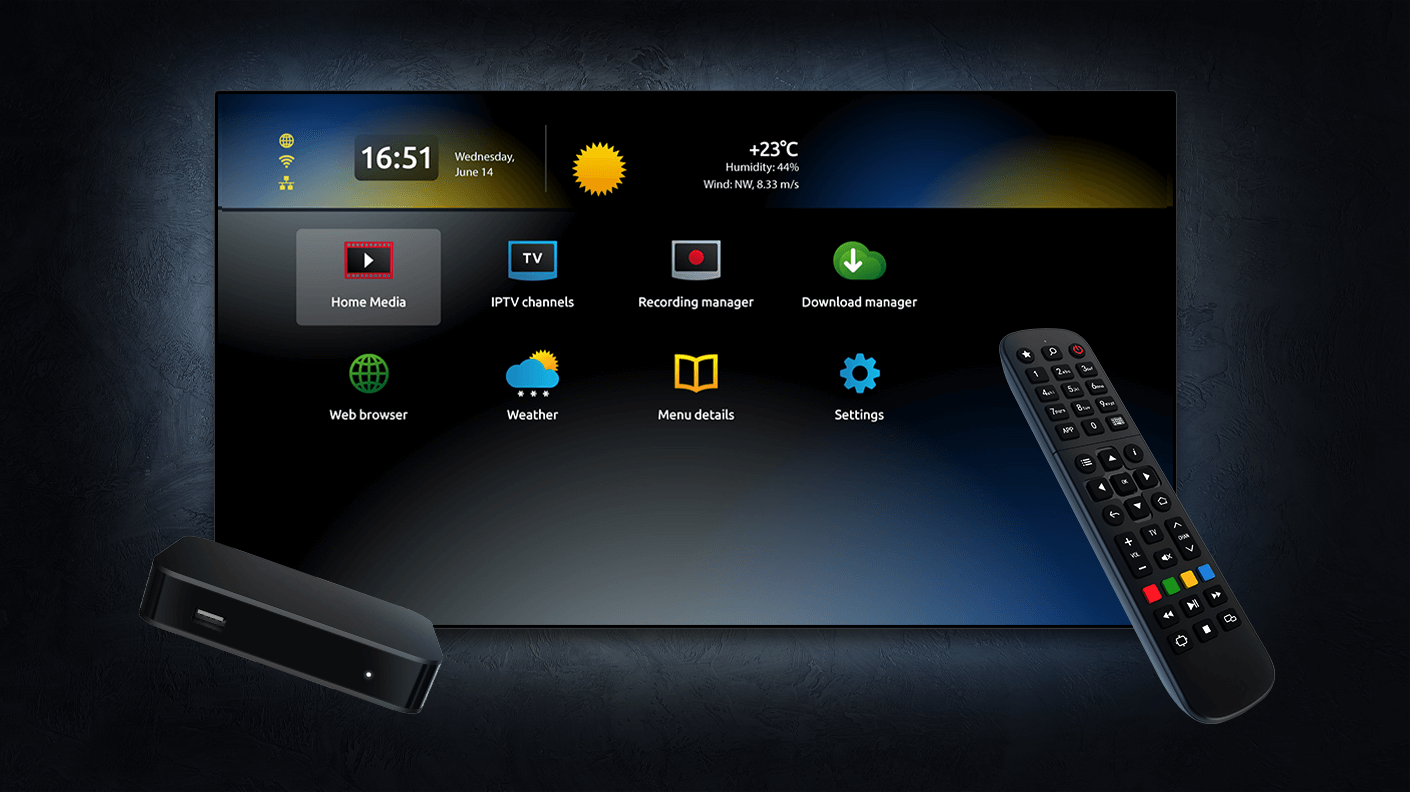

Linux 4.9: the best set-top
box experience

Thanks to the Linux OS, operators receive a device where the UI and other components are tailored to meet the service’s needs. The release of new firmware further improves the device even after commercialization, thereby prolonging its life cycle.

HEVC and 4K HDR

MAG522 plays back 4K HDR video at 60 fps.2 It also supports HEVC and other common codecs, which helps transmit content in high quality with minimal network load—4K content after H.264 processing requires a speed of 32 Mbps, while HEVC needs only 16 Mbps.3

Original Image
Modified Image

Ethernet port and Wi-Fi

Infomir releases MAG522w3—modified MAG522—with a built-in dual-band Wi-Fi module.

MAG522

Uses a 100 Mbps Ethernet interface and operates over a wired network.

MAG522w3

Uses a 100 Mbps Ethernet port and dual-band Wi-Fi module. The 2.4 GHz band provides a speed of up to 100 Mbps, while the 5 GHz band offers up to 550 Mbps.4

Advanced API for apps and
integrations

With a new Infomir API, you can easily integrate CAS/DRM and develop software. The user-friendly interface helps develop apps for Linux-based MAG set-top boxes as for web pages using HTML, CSS, and JavaScript.

The solution is suitable for everyone: operators create client apps for middleware, while system integrators release software. For example, hotels, cruise ships, and rotational camps.

MAG522 is easy to integrate into an existing project

Few resources are required to upgrade to MAG522. If the service is already running on MAG devices, then all integrations and apps for Linux set-top boxes by Infomir will work after minimal adjustment.

Universal technical support

Infomir provides technical support in English and Russian with different levels of the SLA . We are available for basic plan users free of charge from Monday to Friday from 9:00 a.m. to 6:00 p.m. UTC+2.

Branding and customization

To promote their brand and make it recognizable, operators can order set-top box customization from Infomir: software, casings, packaging, and remote controls for their set-top boxes.

HoReCa solutions

You don’t need to connect MAG522/522w3 to the Internet. The set-top box plays back content from NAS servers and external media.

This option will be useful on ships and facilities where there is no Internet access. The device plays back videos from file storage, which is convenient for hotels and bars.

Eight-channel Dolby Digital Plus™

The set-top box offers a clear surround eight-channel sound thanks to the Dolby Digital Plus system. This sound quality ensures an immersive experience and makes viewers feel like they are starring in a TV show or movie.5

Remote control with convenient buttons

MAG522 comes with a modern IR remote control. The case is made of non-slip ABS plastic. The life cycle of each button is 300,000 clicks.

IR systems and code pages can be configured for the remote control. This feature is useful if there are other IR devices nearby, such as a TV or air conditioner. By using a different code page, the remote control won’t affect the operation of other devices.

USB ports for peripherals

MAG set-top boxes are compatible with wired and wireless USB devices. MAG522 supports keyboards, mice, and other devices. Use them to improve your browser experience, enter passwords, and find content in apps.1

Performance and reliability
with Amlogic chipsets

An Amlogic S905X2 chipset and ARM Cortex-A53 CPU boost the performance of MAG522 by 25% compared to the previous generation. The devices provide smooth video playback and instant interface response.

  • Durable body with rubberized feet
  • High-speed HDMI 2.1 port
  • Quad-core ARM Cortex-A53, 1,900 MHz
  • 1 GB DDR3 RAM
  • LED indicator
  • IR receiver
  • USB 3.0
  • USB 2.0
  • 100 Mbps Ethernet port
  • Power input
  • Dual-band Wi-Fi module, 550 Mbps
    (MAG522w3 only)
  • 4 GB eMMC storage
  • 850 MHz ARMG31-MP2 GPU

Package contents

MAG522/MAG522w3
set-top box
Seneasy SRC-4015 IR remote control
HDMI cable (1.2 m)
Power adapter*
2 × AAA batteries

*The power adapter is equipped with a plug that complies with your country's standards.

Specifications

Audio & video
Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Audio codecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Video codecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVTT, closed captions
Playlist formats M3U, M3U8, PLS, CUE
Hardware
Chipset Amlogic S905X2
Performance 18 400 DMIPS
Processor Quad-core ARM Cortex-A53, 1,900 MHz
RAM 1 GB DDR3
Flash memory 4 GB eMMC
Firmware and CAS/DRM
Operating system Linux 4.9
CAS/DRM Upon request
Middleware supported Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available.
Interfaces
Digital ports HDMI 2.1
Ethernet 100 Mbps
USB USB 2.0 × 1, USB 3.0 × 1
Wi-Fi Built-in 2T2R ac (MAG522w3 only)
Power input
Power adapter DC 5V, 2A (DC 12V, 1А optional)
Physical properties
W/D/H 132 × 87 × 26 mm
Weight 125 g

FAQ

Here are the answers to some questions operators and users frequently ask.

Does Infomir have a set-top box knowledge base?

Yes, we have an updatable knowledge base. It provides instructions and answers to questions about Linux, Android, and Android TV™ devices, the Ministra TV platform multiscreen middleware, and the Ministra Player client app.

Operators will be able to find guides to creating and customizing apps and configuring MAG set-top boxes. These answers help the operator’s technical support quickly solve issues and configure user devices.

Is there any API documentation?

Yes, our MAG JS API is fully documented. Thanks to these instructions, developers can create apps for MAG set-top boxes and integrate them with middleware, CAS/DRM, and other solutions.

Documentation saves developers time—they don’t need to contact technical support.

What middleware is MAG522 initially compatible with?

The set-top boxes are natively compatible with Ministra TV and can be used in such projects without any additional integration. MAG522 is optimized for different platform versions.

Does MAG522 integrate with other middleware and CAS/DRM?

Yes, MAG522 integrates with different middleware and CAS/DRM via API.

Infomir plans to integrate Linux MAG set-top boxes with Widevine and Zixi CAS/DRM solutions. Operators will be able to integrate with Securemedia and Verimatrix systems on request.

How many years will MAG522 last?

Like any Infomir device, the MAG522 set-top box is designed to last for years. The device operates for months without rebooting, does not freeze, or break down. With MAG522, operators get a reliable device that helps save resources on technical support.

Where is MAG522 manufactured?

MAG522 is designed and assembled in Odesa (Ukraine), where Infomir’s headquarters and production site are located.

What do other operators say about MAG set-top boxes?

MAG devices are used by millions of people around the world. Infomir’s products have their community where operators, distributors, and system integrators share their experiences.

* Android TV is a trademark of Google LLC.

** Protected by one or several approved patents listed in the patentlist.hevcadvance.com

*** The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

1. A paid subscription may be required to access the content.

2. A compatible TV is required for 4K HDR content playback.

3. According to the tests conducted at Infomir’s in-house laboratory.

4. At the best Wi-Fi signal reception conditions. The tests were conducted at Infomir’s in-house laboratory.

5. A TV or home theater supporting Dolby Digital Plus™ is required.
