MAG544 –
High-performance
4K set-top boxes
powered by the ARM Cortex-A35 CPU

The MAG544 and MAG544w3 are Infomir’s IPTV set-top boxes powered by Linux OS. These devices come with the Amlogic S905Y4 chipset and quad-core ARM Cortex-A35 CPU. They play video stably and smoothly in all modern formats, including 4K.

Their hardware enables operators to provide comfortable and reliable services to their customers, and the continuity of the UI ensures easy integration into projects that use MAG devices.

The MAG544 and MAG544w3 are Infomir’s IPTV set-top boxes powered by Linux OS. These devices come with the Amlogic S905Y4 chipset and quad-core ARM Cortex-A35 CPU. They play video stably and smoothly in all modern formats, including 4K.

Their hardware enables operators to provide comfortable and reliable services to their customers, and the continuity of the UI ensures easy integration into projects that use MAG devices.

Check the price

Device for users and operators from all over the world

With MAG544/544w3 set-top boxes, users can enjoy Linear TV, video-on-demand, and IPTV/OTT content1. The devices play content from the Internet, local network, and external media. Operators are welcome to customize these set-top boxes to suit their projects, providing users with a unique interface, user experience, and reliable technical support.

High-performance Amlogic S905Y4 chipset

The new Amlogic S905Y4-B chipset and quad-core ARM Cortex-A35 CPU boost the performance of the MAG544/544w3 compared to the previous generation of MAG boxes. All of these technical features help the UI to work fast and play content smoothly.

4K HDR video at 60 fps

MAG544/544w3 set-top boxes support AV1 and HEVC codecs which enables them to play 4K content without overloading the Internet connection2. While H.264 requires 32 Mbps to process video, HEVC requires only 16 Mbps3.

Original Image
Modified Image

Wired and wireless Internet connection

MAG544w3 is a modified model with a built-in Wi-Fi module.

MAG544

Uses a 100 Mbps Ethernet port to connect to the Internet. Content loads from the wired network only.

MAG544w3

Offers two options to connect to the Internet: a 100 Mbps Ethernet port and a built-in Wi-Fi module. Wireless connectivity operates in two bands: 2.4 GHz with speeds up to 100 Mbps and 5 GHz4 with speeds up to 550 Mbps.

Fast integration via API

Infomir offers its in-house API that makes integrating content protection systems and software development easier. You can develop apps for MAG set-top boxes powered by Linux OS as webpages using HTML, CSS, and JavaScript.

Operators can create client apps for middleware, and system integrators can release software for hotels, camps, and cruise ships.

Dolby Digital Plus™ surround sound

Backed by eight-channel Dolby Digital Plus™ audio, you can connect seven audio speakers and a subwoofer to your set-top box. This way, you evenly distribute audio tracks in space and let users enjoy an immersive experience while viewing content5.

Fast and easy transition from early MAG models

MAG544/544w3 are easy to integrate into an existing video service where legacy MAG set-top boxes have already been in use. It only takes a few lines of code to make it happen.

Customization and branding

Operators can personalize MAG devices to suit their projects. At the client's request, we can provide customization services to add operator brands to packaging, set-top boxes, or remote controls, as well as customizing the device software.

Perfect for hotels and cruise ships

These devices can be used offline. MAG544/544w3 play content stably from both external media and NAS servers. Hotels, restaurants, cafes, cruise ships, and places without access to the Internet can enjoy this feature.

Modern programmable remote controls

The MAG544 comes with a programmable IR remote control made of anti-slip ABS plastic. It’s durable—each button is designed to withstand 300,000 presses.

You have the option to set up code pages and IR systems. This way, you configure the remote control so that it avoids interfering with other devices in the room; or, instead, it can control the TV, air conditioner, and other devices equipped with an IR receiver.

USB ports for connecting peripherals

The set-top box comes with two USB 2.0 ports. With these, you can connect various peripherals to the device, such as audio speakers, keyboards, and mice. This makes entering text and using the built-in web browser much easier.

Reliability and smooth playback

Thanks to the specifications, MAG544/544w3 ensure stable operation of the device's UI. The set-top box can play content stably for months on end without shutting down or rebooting.

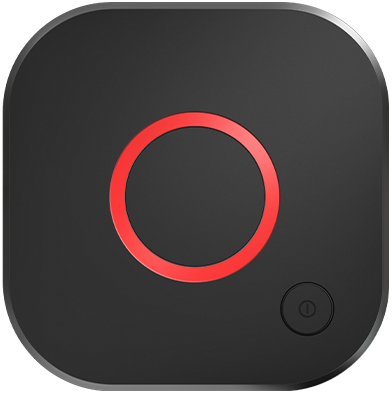

  • Solid body with rubber feet
  • Fast HDMI 2.1 port
  • Quad-core ARM Cortex-A35 CPU, 2,000 MHz
  • 4 GB eMMC storage
  • 1 GB LPDDR4 RAM
  • Indicator light
  • USB 2.0 x 2 pcs
  • 100 Mbps Ethernet
  • Power
  • Dual-band 550 Mbps Wi-Fi module (MAG544w3 only)
  • ARM G31-MP2 graphics card, 850 MHz
  • IR receiver

Package contents

MAG544/MAG544w3
set-top box
MiniFusion IR remote control
HDMI cable, 1.2 m
Power supply*
AAA batteries, 2 pcs

*The power supply comes with a plug that complies with the standards of your country.

Specifications

Audio & video
Video modesPAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Audio codecsMPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Video codecsMPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Video containersTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formatsJPEG, PNG, BMP, RAW
SubtitlesDVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions
Playlist formatsM3U, M3U8, PLS, CUE
Hardware
ChipsetAmlogic S905Y4-B
Performance16 500 DMIPS
ProcessorQuad-core ARM Cortex-A35, 2,000 MHz
RAM1 GB LPDDR4
Flash memory4 GB eMMC
Firmware and CAS/DRM
Operating systemLinux 4.9
CAS/DRMUpon request
Middleware supportedPre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available.
Interfaces
Digital portsHDMI 2.1
Ethernet100 Mbps
USBUSB 2.0 × 2
Wi-FiBuilt-in 2T2R ac (MAG544w3 only)
Power input
Power adapterDC 5V, 2A (DC 12V, 1А optional)
Dimensions
W/D/H115 × 115 × 28 mm
Weight170 g

FAQ

Here are answers to the most popular questions from operators and users.

Does Infomir have a knowledge base on set-top boxes?

You can download all of Infomir’s documentation for Android, Android TV™, and Linux set-top boxes from the updated knowledge base. It also provides information about the Ministra TV platform multiscreen middleware and the Ministra Player client app.

Operators are welcome to read the guidelines and recommendations on developing apps or customizing and setting up MAG set-top boxes. This information enables the video service’s technical support to troubleshoot and monitor client devices.

Do you have API documentation?

Infomir has fully documented the MAG JS API. This information makes the developers’ jobs easier by reducing their technical support requests. Ready-made guidelines make it easy to develop apps for MAG devices and integrate middleware, CAS/DRM, and other solutions.

Which middleware is natively compatible with MAG544?

All of Infomir’s IPTV set-top boxes are natively compatible with the Ministra TV platform. MAG544 can be used in projects using this middleware without extra integrations.

Can MAG544 be integrated with other middleware and CAS/DRM?

Using the API, you can integrate the model with various middleware and content protection systems. Integration with Widevine, Securemedia, and Verimatrix systems is available upon request.

How long will the MAG544 last?

Backed by solid specifications and software for MAG set-top boxes, these devices can work for months on end without rebooting. Operators provide users with stable services and spend less maintaining client devices.

Where is the MAG544 made?

This model, like other MAG devices, was developed and assembled by Infomir in Odesa (Ukraine).

What do operators say about MAG devices?

To learn more about using MAG set-top boxes, you can visit the open community of Infomir products. Here, operators, system integrators, and distributors share information and knowledge about working with our devices.

*Android and Android TV are trademarks of Google LLC.

**Protected by one or more of the approved patents listed on www.patentlist.hevcadvance.com.

*** HDMI and HDMI High-Definition Multimedia Interface, as well as the HDMI Logo, are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the USA and other countries.

1. A paid subscription may be required to access this content.

2. A compatible TV is required to view content in 4K and HDR.

3. According to the test conducted in the Infomir laboratory.

4. In the best possible Wi-Fi reception conditions. The test was conducted in the Infomir research laboratory.

5. You’ll need a Dolby Digital Plus compatible TV or home theater.
