MAG540 –
High-performance 4K STBs with a brand new
ARM Cortex-A35 CPU

MAG540 and MAG540w3 are Linux STBs powered by the quad-core ARM Cortex-A35 CPU with a brand new Amlogic S905Y4 chipset. This hardware makes the model much more powerful than the legacy STBs. The devices ensure easy and smooth playback of content in all popular modern video formats, including 4K.

With MAG540/540w3, operators can offer reliable service to their subscribers. The interface continuity makes the model easy to integrate into projects that previously used MAG set-top boxes. Infomir can integrate set-top boxes with CAS/DRM and middleware at the operator’s request.

MAG540 and MAG540w3 are Linux STBs powered by the quad-core ARM Cortex-A35 CPU with a brand new Amlogic S905Y4 chipset. This hardware makes the model much more powerful than the legacy STBs. The devices ensure easy and smooth playback of content in all popular modern video formats, including 4K.

With MAG540/540w3, operators can offer reliable service to their subscribers. The interface continuity makes the model easy to integrate into projects that previously used MAG set-top boxes. Infomir can integrate set-top boxes with CAS/DRM and middleware at the operator’s request.

A set-top box for operators
and users worldwide

With MAG540/540w3, users can watch linear TV, video on demand, and content from IPTV/OTT providers.1 Also, the set-top box plays content within the local network and from external media. Operators can customize the device to give users a bespoke UI/UX and provide reliable technical support.

High-performance Amlogic S905Y4 chipset

With the new Amlogic S905Y4-B chipset and ARM Cortex-A35 CPU, the device is 25% more powerful than the legacy MAG set-top boxes. The MAG540/540w3 hardware ensures a fast interface and smooth playback.

It plays 4K HDR video at 60 fps

MAG540/540w3 supports AV1 and HEVC codecs to make sure the device plays 4K content without overloading the network2 While the H.264 codec requires 32 Mbit/sec to process such video, HEVC requires only 16 Mbit/sec.3

Original Image
Modified Image

Ethernet and Wi-Fi connectivity

The MAG540w3 modification has a built-in Wi-Fi module.

MAG540

You can connect it via a 100 Mbit/s Ethernet interface and use it only within a wired network.

MAG540w3

The set-top box supports both wired and wireless connections. The Ethernet port provides data transfer speeds of up to 100 Mbit/s. The Wi-Fi module operates in two bands with data transfer speeds of up to 100 Mbit/s in 2.4 GHz mode and 550 Mbit/s in 5 GHz4 mode

Easy integration via API

Infomir offers an API that makes it easy to integrate content protection systems and develop software. Create applications for Linux-based MAG set-top boxes as you would for web pages in HTML, CSS, and JavaScript.

This solution enables operators to create client applications for middleware, and system integrators to roll out software for hotels, cruise ships, and rotational camps.

Dolby Digital Plus™ surround sound

The device supports Dolby Digital Plus to provide clear eight-channel surround sound. The set-top box can be connected to seven speakers and a subwoofer. This way, the soundtracks get distributed in space, creating a surround sound effect and offering an immersive experience5.

Easy transition from legacy MAG models

MAG540/540w3 is easy to integrate into an existing project that previously used MAG set-top boxes. It requires minimal adaptation to get the devices up and running.

Customization and branding

Operators who want to personalize their set-top boxes enjoy customization services. Upon request, Infomir can customize the software and place operator branding on the packaging, set-top boxes, and remote controls.

The set-top box is suitable for hotels and cruise ships

MAG540/540w3 plays content from external media and NAS servers, allowing them to operate without any Internet connection. This feature is convenient for hotels, cafes, restaurants, cruise ships, and facilities out of network coverage.

Ergonomic remote control

MAG540/540w3 comes with a state-of-the-art IR remote control with customizable IR systems. If other devices with an infrared receiver (air conditioner or TV set) are located nearby, the remote control can be configured in a way that doesn’t interfere with their operation.

The remote has five programmable buttons. Copy the IR codes from the buttons of other devices onto them and control the devices in the room from one remote control. Remote control training will take no more than one minute.

The remote control is easy to hold thanks to its non-slip ABS plastic casing. The device is designed to withstand 300,000 presses per button.

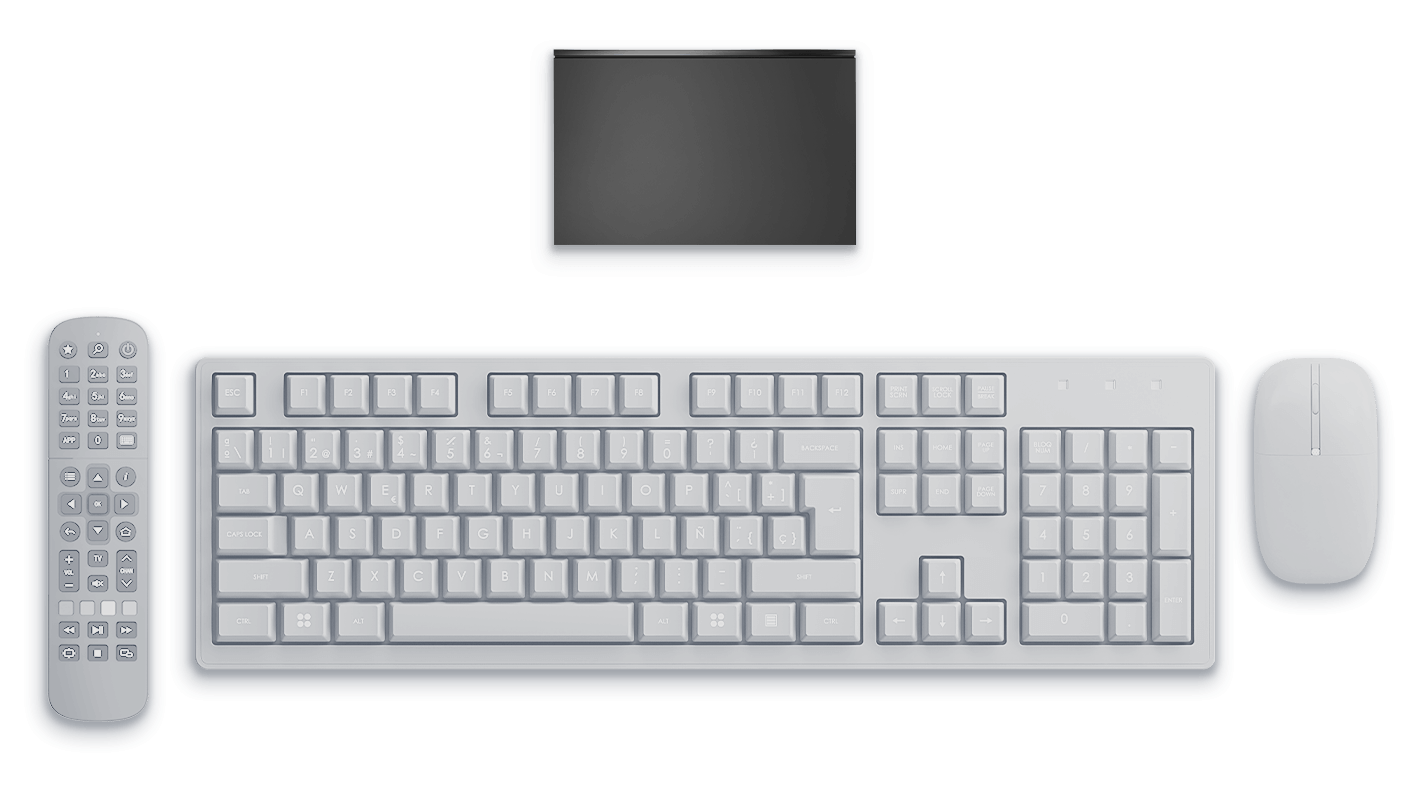

USB ports for connecting peripherals

MAG540/540w3 is equipped with two USB 2.0 ports. They allow connecting wired and wireless devices, such as keyboards, mice, memory cards, etc. Peripherals make it easier to type and use the browser.

Reliable and smooth playback

The MAG540/540w3 interface is fast thanks to its high-performance components. The device plays content smoothly and without delays, so users can enjoy it without worrying about rebooting or tweaking.

  • Sturdy case with rubber feet
  • HDMI 2.1 high-speed port
  • Quad-core ARM Cortex-A35 CPU, 2,000 MHz
  • 4 GB of eMMC memory
  • 1 GB of LPDDR4 RAM
  • Indicator light
  • USB 2.0 x 2 ports
  • 100 Mbps Ethernet
  • Power
  • Dual-band Wi-Fi module, 550 Mbps (MAG540w3 only)
  • ARM G31-MP2 video accelerator, 850 MHz
  • Infrared receiver

Package contents

MAG540/MAG540w3
set-top box
SRC-4015-1 IR remote control
HDMI cable, 1.2 m
Power supply*
AAA batteries, 2 pcs

*The power supply comes with a plug that complies with the standards of your country.

Specifications

Audio & video
Video modesPAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Audio codecsMPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Video codecsMPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Video containersTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formatsJPEG, PNG, BMP, RAW
SubtitlesDVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions
Playlist formatsM3U, M3U8, PLS, CUE
Hardware
ChipsetAmlogic S905Y4-B
Performance16 500 DMIPS
ProcessorQuad-core ARM Cortex-A35, 2,000 MHz
RAM1 GB LPDDR4
Flash memory4 GB eMMC
Firmware and CAS/DRM
Operating systemLinux 4.9
CAS/DRMUpon request
Middleware supportedPre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available.
Interfaces
Digital portsHDMI 2.1
Ethernet100 Mbps
USBUSB 2.0 × 2
Wi-FiBuilt-in 2T2R ac (MAG540w3 only)
Power input
Power adapterDC 5V, 2A (DC 12V, 1А optional)
Dimensions
W/D/H120 × 78 × 21 mm
Weight110 g

FAQ

Here are answers to the most popular questions from operators and users.

Does Infomir have a set-top box knowledge base?

Yes, we do! Our updatable knowledge base contains instructions and answers to questions about Android, Android TV™, and Linux set-top boxes. Also, it covers the Ministra TV platform multiscreen middleware and the Ministra Player client application.

Operators can access guides to creating applications, customizing devices, and configuring MAG set-top boxes. This data will help their technical support teams quickly troubleshoot problems and set up user devices.

Do you have API documentation?

Yes, we have fully documented. the MAG JS API. The guides will save developers time they’d otherwise spend on contacting technical support. With our documentation, it’s easy to create applications for MAG devices and integrate middleware, CAS/DRM, and other solutions.

Which middleware is natively compatible with MAG540?

All MAG devices are natively compatible with the Ministra TV platform. Operators who use this middleware in their projects can include MAG540 without additional integrations.

Is it possible to integrate MAG540 with other middleware and CAS/DRM?

Yes, the model integrates with various middleware and CAS/DRM via API.

Also, Infomir plans to integrate MAG Linux set-top boxes with Widevine and Zixi CAS/DRM solutions. Integration with Securemedia and Verimatrix systems is available upon request.

How long will MAG540 last?

All set-top boxes manufactured by Infomir are designed to last for years. MAG540 has the hardware to run for months on end without rebooting. It plays content smoothly without crashing. MAG540 lets operators provide a reliable service to subscribers and save money on technical support.

Where is MAG540 manufactured?

Like other MAG devices, the model is designed and assembled by Infomir in Odesa, Ukraine.

What do operators think of MAG devices?

Millions of people around the world use MAG set-top boxes. Operators, system integrators, and distributors share their experiences in the Infomir product community.

*Android and Android TV are trademarks of Google LLC.

**Protected by one or more of the approved patents listed on www.patentlist.hevcadvance.com.

*** HDMI and HDMI High-Definition Multimedia Interface, as well as the HDMI Logo, are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the USA and other countries.

1. A paid subscription may be required to access this content.

2. A compatible TV is required to view content in 4K and HDR.

3. According to the test conducted in the Infomir laboratory.

4. In the best possible Wi-Fi reception conditions. The test was conducted in the Infomir research laboratory.

5. You’ll need a Dolby Digital Plus compatible TV or home theater.
