Commercial proposition
MAG254

IPTV SET-TOP BOX MAG254/MAG255

MAG254/255 is a powerful Set-Top Box with efficient processor STiH207 and increased RAM memory, and it is an optimal solution for IPTV/OTT projects. The Set-Top Box is designed to fulfill business projects of internet providers, OTT operators and content aggregators. The increased productivity of MAG254/255 enables to use resource-intensive interactive applications and support 3D-video.
STiH207 650Mhz, Linux 2.6.23, Composite AV, HDMI 1.4, USB x 2, S/PDIF, LAN, WiFi Ready



Specifications

  • MAG254
  • MAG254 w1
  • MAG255

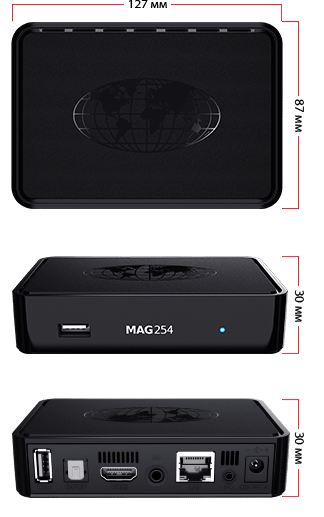

Dimensions
Width/depth/height, (mm) 127/87/30
Weight, g 190
Hardware
Processor STiH207
RAM 512 MB
Flash memory 256 MB
Software
Operating system Linux 2.6.23
Built-in Media Portal with WebKit-based IPTV-functionality HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
DRM option Secure Media
Middleware supported Ministra TV-platform, Netup, SmartLabs, Netris, Beenius
Interfaces
Audio output S/PDIF, HDMI 1.4-output, Composite + stereo A/V output, Ethernet 100 Mb/s, USB 2.0 (WiFi-adapter can be connected)
Sources of media content
PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices
Audio&Video
Audio сodecs MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), Dolby Digital, AAC-LC, HE-AAC v1, HE-AAC v2
Audio formats MP3, MPA, M4A, WMA (optional), Ogg, WAV
Video modes 1080i, 1080p, 720p, 576p, 480р, PAL, NTSC
Video сodecs MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), XviD; HD video supporting (up to 40 Mbit/s and above)
Video containers MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT
Image formats JPEG, PNG, BMP, GIF, RAW
Subtitles ttxt sub*, DVB, PGS, Srt*, Sub*, Closed captions
Playlist formats M3U
Standard set
MAG254/255 Set-Top Box, user manual, HDMI cable, Power adapter 12V 1A, remote control, 2 AAA batteries, packaging
MAG254 video review
Video
The Ministra TV platform
Specifically for MAG
Easy Launch of Your Project

Ministra is a multi-screen TV platform for an efficient launch of IPTV/OTT projects in a short timeframes. It is ideal for operators with a subscriber base of up to 50,000 users.

Cut deployment times

The Ministra TV platform is compatible with external components (OSS/BSS, CRM, etc.).

Working with Infomir
  • Shipping to any country in the world in the shortest time through a well-organized logistics system.
  • The Ministra multi-screen TV platform for an efficient launch of IPTV/OTT projects for use on popular consumer devices.
  • Devices and accessories branding according to operators’ needs.
  • Qualified consulting and technical support.

New generation of MAG Set-Top Boxes

We offer you our recent elaborations similar to MAG255 by functionality. You may also find the most appropriate model in our catalogue.
