Commercial proposition
275

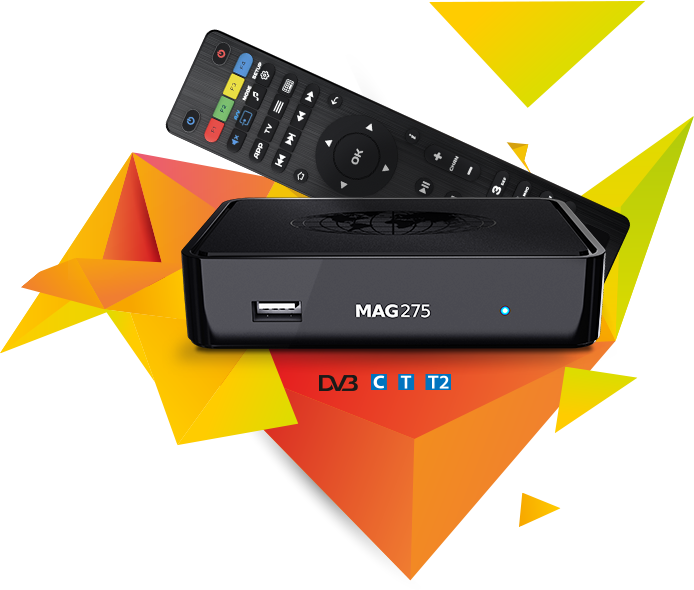

IPTV SET-TOP BOX MAG275

MAG275 hybrid Set-Top Box is a cross-functional solution for telecommunication operators on the market. By providing IPTV and OTT services, cable operators can enlarge their client database. Internet providers can offer highly-demanded digital television services to their clients.
STiH253 650 MHz, Linux 2.6.23, Composite AV, HDMI 1.4, USB 2.0 x 2, DVB-C, DVB-T, DVB-T2, Ethernet, Wi-Fi ready

  Buy now
or

Specifications

Dimensions
Width/depth/height, (mm) 127/87/30
Weight, g 190
Hardware
Processor STiH253
RAM 512 Mb
Flash memory 256 Mb
Software
Operating system Linux 2.6
Built-in Media Portal with WebKit-based IPTV-functionality HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
Middleware supported Ministra TV-platform
Interfaces
HDMI 1.4-output Composite + stereo A/V output Ethernet 100 Mb/s USB 2.0 (WiFi-adapter can be connected)
Sources of media content
PC and NAS in local network Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP) USB-devices, DVB-C, DVB-T, DVB-T2
Audio & video
Audio сodecs MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), Dolby Digital (optional)
Audio formats MP3, MPA, M4A, WMA (optional), Ogg, WAV
Video modes 1080i, 1080p, 720p, 576p, 480р, PAL, NTSC
Video сodecs MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), WMV-9 (optional), VC1 video, XviD; HD video supporting (up to 40 Mbit/s and above)
Video containers MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
Image formats JPEG, PNG, BMP, GIF, RAW
Subtitles DVB, SRT, text MKV
Playlist formats M3U
Standard set
MAG275 Set-Top Box, user manual, Mini jack cable to RCA (A/V), Power adapter 12V 1A, remote control, 2 AAA batteries, packaging
The Ministra TV platform
Specifically for MAG
Easy Launch of Your Project

Ministra is a multi-screen TV platform for an efficient launch of IPTV/OTT projects in a short timeframes. It is ideal for operators with a subscriber base of up to 50,000 users.

Cut deployment times

The Ministra TV platform is compatible with external components (OSS/BSS, CRM, etc.).

Working with Infomir
  • Shipping to any country in the world in the shortest time through a well-organized logistics system.
  • The Ministra multi-screen TV platform for an efficient launch of IPTV/OTT projects for use on popular consumer devices.
  • Devices and accessories branding according to operators’ needs.
  • Qualified consulting and technical support.
