MAG324

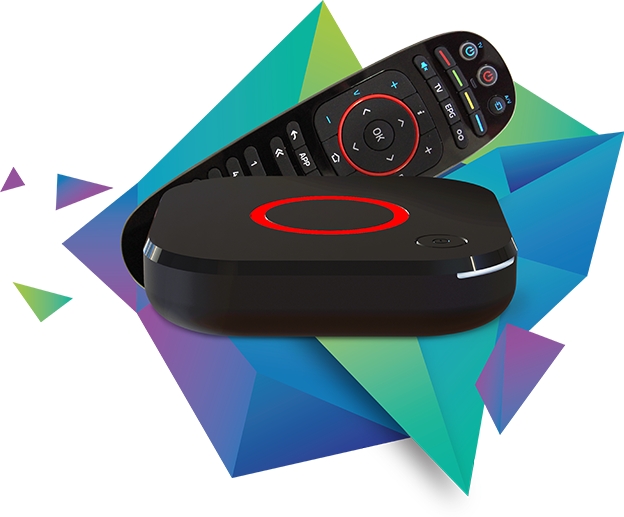

IPTV SET-TOP BOX MAG324

The cost-effective solution for your IPTV/OTT project with a full set of functions. MAG324 is a basic set-top box on a Broadcom chipset that supports HEVC compression. The device, therefore, runs quickly and with minimal network load. Through its HDMI 1.4b output, you can enjoy high-quality video.

We have also completely changed the case and remote control design, making it more ergonomic and easier to use.

BCM75839, Linux 3.3, OpenGL ES 2.0, HEVC, 512 MB Flash/1 GB RAM



* The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

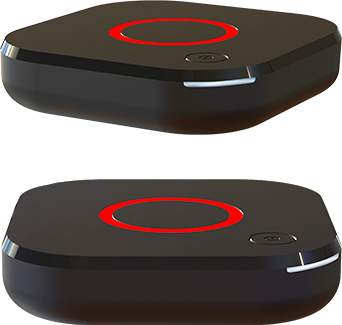

What is the difference?

MAG324

MAG324 is a unique open platform. You can make changes to our set-top box software as well as integrate it with other developers’ software.

MAG324w2

MAG324w2 is a version with a built-in Wi-Fi module of 802.11 b/g/n/ac standard. This modification enables users to establish a network connection without additional equipment.

Useful Features
HEVC support

The set-top box plays the HEVC-compressed files. This means the network load will be lower, even when delivering high-quality content.

High-performance

Modern high-performance processor on the Broadcom chipset and 1 GB RAM is good enough to playback the high-quality video.

Ergonomic design

The set-top box and remote control are presented in the new Micro Fusion design. They will look good in any interior.

Specifications

  • MAG324
  • MAG324w2
Dimensions
Width/depth/height, (mm) 115x115x28
Weight, g 170
Hardware
Chipset BCM75839
Processor MIPS 4KE Dual Core CPU 750Mhz
Performance 2000 DMIPS
RAM 1 GB
Flash memory 512 MB NAND
Software
Operating system Linux 3.3
Built-in Media Portal with WebKit-based IPTV-functionality, HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
Middleware supported Ministra TV platform version 5.2.0 or higher
Interfaces
Audio output S/PDIF (optional), HDMI 1.4-output, Composite + stereo A/V output, Ethernet 100 Mb/s, USB2.0х2
Sources of media content
PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, HTTP), USB-devices
Audio & video
Audio сodecs MPEG-1 layer I/II/III, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital Plus
Audio formats MP3, MPA, M4A, Ogg, WAV
Video modes 1080i, 1080p, 720p, 576p, PAL, NTSC
Video сodecs MPEG-1/2, MPEG-4, H.264/AVC HP@L4.2, H.265/HEVC Main/Main10 @L4.1 up to 1080p at 60 fps, XviD
Video containers MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT
Image formats JPEG, PNG, BMP, RAW
Subtitles ttxt sub*, DVB, WebVtt, PGS, Ass/Ssa*, Srt*, Sub*, Closed captions
Playlist formats M3U
Standard set
MAG324 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging
