Commercial proposition
MAG349

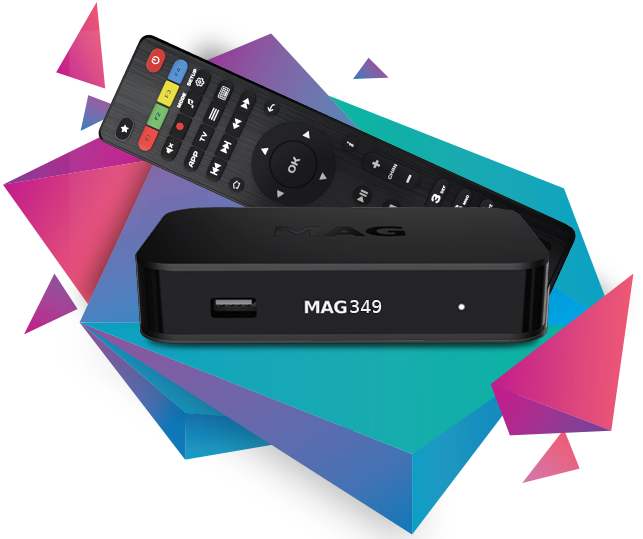

IPTV SET-TOP BOX MAG349

MAG349 is a premium IPTV/OTT Set-Top Box by Infomir, a European manufacturer. It is targeted to the operators’ market and provides interactive TV services over IP-based networks (IPTV, VoD, OTT). This device comes with the most advanced features, making its performance extraordinary. A larger RAM and heavy-duty processor allow you to enhance the velocity of STB. HEVC technology, used in MAG349, requires smaller network bandwidth for provision of video of higher quality. MAG349is equipped with dual-band Wi-Fi and ultimate Bluetooth adaptors that provide additional connection opportunities.

HEVC support. Powerful media processor and Broadcom chipset with 6000 DMIPS performance. Built-in Wi-Fi 2.4GHz/5GHz(ac) and Bluetooth 4.0 adaptors.



Specifications

Dimensions
Width/depth/height, (mm) 132x87x26
Weight, g 137
Hardware
Chipset BCM7250
Processor ARM A15 (B15) Core CPU 1.2 GHz
Performance 6000 DMIPS
RAM 1 GB
Flash memory 8 GB
Software
Operating system Linux 3.3
Built-in Media Portal with WebKit-based IPTV-functionality, HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript; ECMA-262, revision 5; Media JavaScript API; C layer SDK
DRM option Secure Media
Middleware supported Ministra TV-platform, SoftAtHome
Interfaces
HDMI 1.4a-output, Composite + stereo A/V output, Audio output S/PDIF, Ethernet 1 Gb/s, 2* USB 2.0 (Wi-Fi adapter can be connected), Built-in Wi-Fi 2.4 GHz/5 GHz ac (optional)
Sources of media content
PC and NAS in local networ, Stream media protocols (RTSP, RTP, UDP, HTTP), USB-devices
Audio & video
Audio сodecs MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), Dolby Digital, AAC-LC, HE-AAC v1, HE-AAC v2
Audio formats MP3, MPA, M4A, OGG, WAV
Video modes 1080i, 1080p, 720p, 576p, 480р, PAL, NTSC
Video сodecs MPEG1/2 MP@HL, H.264 HP@level 4.1, H.265 (HEVC), MPEG4 part 2 (ASP), WMV-9 (optional), XviD; 3D and HD video supporting
Video containers MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
Image formats JPEG, PNG, BMP, GIF, RAW
Subtitles ttxt sub*, DVB, WebVtt, PGS, Ass/Ssa*, Srt*, Sub*, Closed captions
Playlist formats M3U
Standard set
MAG349 Set-Top Box, HDMI cable, Remote control, 2 AAA batteries, packaging, Power adapter 12 V 1 A, User manual
The Ministra TV platform
Specifically for MAG
Easy Launch of Your Project

Ministra is a multi-screen TV platform for an efficient launch of IPTV/OTT projects in a short timeframes. It is ideal for operators with a subscriber base of up to 50,000 users.

Cut deployment times

The Ministra TV platform is compatible with external components (OSS/BSS, CRM, etc.).

Working with Infomir
  • Shipping to any country in the world in the shortest time through a well-organized logistics system.
  • The Ministra multi-screen TV platform for an efficient launch of IPTV/OTT projects for use on popular consumer devices.
  • Devices and accessories branding according to operators’ needs.
  • Qualified consulting and technical support.

New generation of MAG Set-Top Boxes

We offer you our recent elaborations similar to MAG349 by functionality. You may also find the most appropriate model in our catalogue.
