Commercial proposition
mag351

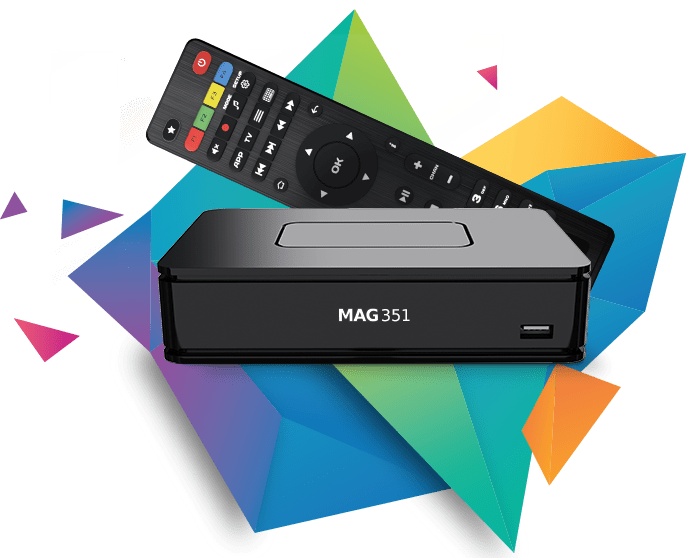

IPTV SET-TOP BOX MAG351

MAG351 is a premium IPTV/OTT Set-Top Box for operators, providing TV services via IP networks. The main advantage of the MAG351 is 4K standard support that will give your subscribers an opportunity to watch video in the best quality. In turn, the 2 GB of RAM and Broadcom chipset with 12 000 DMIPS create extra velocity.

4K/HEVC support; Super-power media processor with Broadcom chipset and 12 000 DMIPS productivity; 2 Gigabyte of RAM; In-built dual-band Wi-Fi 2.4GHz/5GHz(ac)(optional) and Bluetooth 4.0 adaptors;



Specifications

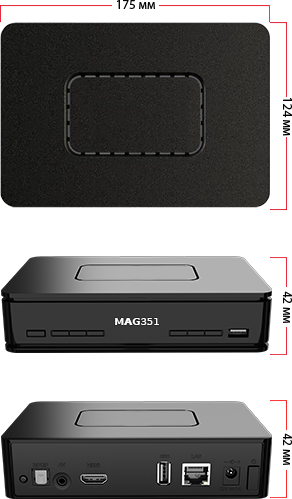

Dimensions
Width/depth/height, (mm) 175x124x42
Weight, g 320
Hardware
Chipset BCM7252s
Processor ARM A15 (B15) Dual Core CPU
Performance 12 000 DMIPS
System memory interface two 32-bit DDR3/DDR4
RAM 2 GB
Flash memory 8 GB
Software
Operating system Linux 4.1
Built-in Media Portal with WebKit-based IPTV-functionality HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
DRM option Secure Media
Middleware supported Ministra TV-platform, SoftAtHome

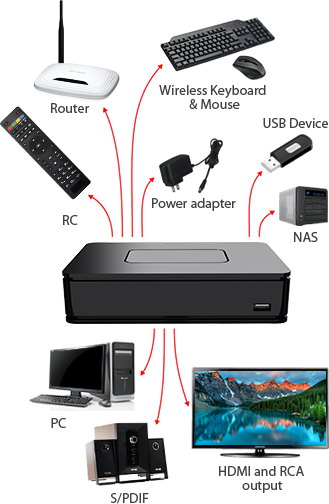

Interfaces
HDMI 2.0 with HDCP 2.2, eSATA ||| (optional), Composite + stereo A/V output, Audio output S/PDIF, Ethernet 1 Gb/s, 2*USB 3.0 (Wi-Fi adapter can be connected), SD slot, Built-in Wi-Fi 2.4 GHz/5 GHz ac (optional)
Sources of media content
PC and NAS in local network,Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices
Audio & video
Audio сodecs MPEG-1 layer I/II/III, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital
Audio formats ac3, acc, ape, flac, m4a, mp3, ogg, wav
Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (only for HEVC)
Video сodecs MPEG-1/2, MPEG-4, H.264/AVC HP@ L4.2, H.265/HEVC Main and Main10 profile up to 1080p at 60 fps, 3D video supporting
Video containers TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats JPEG, PNG, BMP, GIF, RAW
Subtitles ttxt sub*, DVB, WebVtt, PGS, Ass/Ssa*, Srt*, Sub*, Closed captions
Playlist formats M3U
Standard set
MAG351 Set-Top Box, HDMI cable, remote control, 2 AAA batteries, packaging, power adapter 12 V 1 A, user manual
The Ministra TV platform
Specifically for MAG
Easy Launch of Your Project

Ministra is a multi-screen TV platform for an efficient launch of IPTV/OTT projects in a short timeframes. It is ideal for operators with a subscriber base of up to 50,000 users.

Cut deployment times

The Ministra TV platform is compatible with external components (OSS/BSS, CRM, etc.).

Working with Infomir
  • Shipping to any country in the world in the shortest time through a well-organized logistics system.
  • The Ministra multi-screen TV platform for an efficient launch of IPTV/OTT projects for use on popular consumer devices.
  • Devices and accessories branding according to operators’ needs.
  • Qualified consulting and technical support.

New generation of MAG Set-Top Boxes

We offer you our recent elaborations similar to MAG351 by functionality. You may also find the most appropriate model in our catalogue.
