MAG424Aw3

Set-top box for AndroidTM
MAG424Aw3

MAG424Aw3 is a cost-effective UHD IPTV/OTT solution intended for medium to large sized operators and telecommunication service providers. The set-top box performed in small form-factor. It has 2 GB operative and 8 GB flash memory, which is good enough to playback and store the high-quality video.

MAG424Aw3 plays the HEVC-compressed files. It means the network load will be lower, even when delivering 4K content. The device runs on Android OS and fully meets the most stringent requirements of the IPTV/OTT market

Equipped with 2 USB, Bluetooth 4.2 and built-in Wi-Fi adapter.

New model MAG
UHD set-top box for Android with 4K

MAG424Aw3 has a built-in Wi-Fi module of 802.11a/b/g/n/ac standard. Wi-Fi works feature is dual-band so that support both 2.4 GHz and 5 GHz channels.

MAG424Aw3

4K and HEVC support

MAG424Aw3

2 GB RAM

MAG424Aw3

8 GB Flash

MAG424Aw3

Bluetooth 4.2

MAG424Aw3

ОS Android 8.0

MAG424Aw3

Built-in Wi-Fi module

Useful Features
Easy to connect

A built-in Wi-Fi module, USB 3.0 and Bluetooth 4.2 support allow connecting any external drive for extra storage space or a keyboard and mouse for comfortably using the set-top box.

High performance

Modern high-performance processor on the HiSilicon chipset Hi3798MV200 and 2 GB RAM is good enough to playback 4K video.

Intuitive interface

The interface strictly observes Google’s UI design guidelines, so it looks familiar to both the operator and the viewer.

Ergonomic design

The set-top box and remote control are presented in the new Micro Fusion design. They will look good in any interior.

4K and HEVC support

With HEVC, 4K video can be efficiently transmitted throw modern fiber-optics networks. MAG424Aw3 is a great example of high-quality HEVC support by both the hardware and software of the device.

Specifications

Dimensions

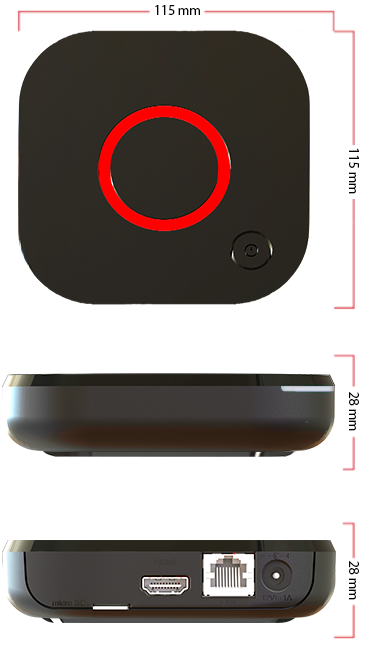

Width/depth/height, mm 115x115x28
Weight, g 175
Hardware
Chipset Hi3798MV200
Processor ARM Cortex-A53 Quad Core CPU 1200 MHz
Performance 15 000 DMIPS
RAM 2 GB
Flash memory 8 GB eMMC
Software
Operating system Android 8.0
Middleware supported Ministra TV platform version 5.4.0 or higher
Interfaces
HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1, Bluetooth 4.2, MicroSD, Built-in Wi-Fi ac 2x2
Sources of media content
PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices
Audio & video
Audio сodecs MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus
Audio formats MP3, MPA, M4A, OGG, WAV, AAC
Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Video сodecs H.265 (HEVC), H.264 (AVC, MVC), MPEG-1/2, MPEG-4
Video containers TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed caption
Playlist formats M3U, M3U8, PLS, CUE
Standard set
MAG424Aw3 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging
